Description
Intro

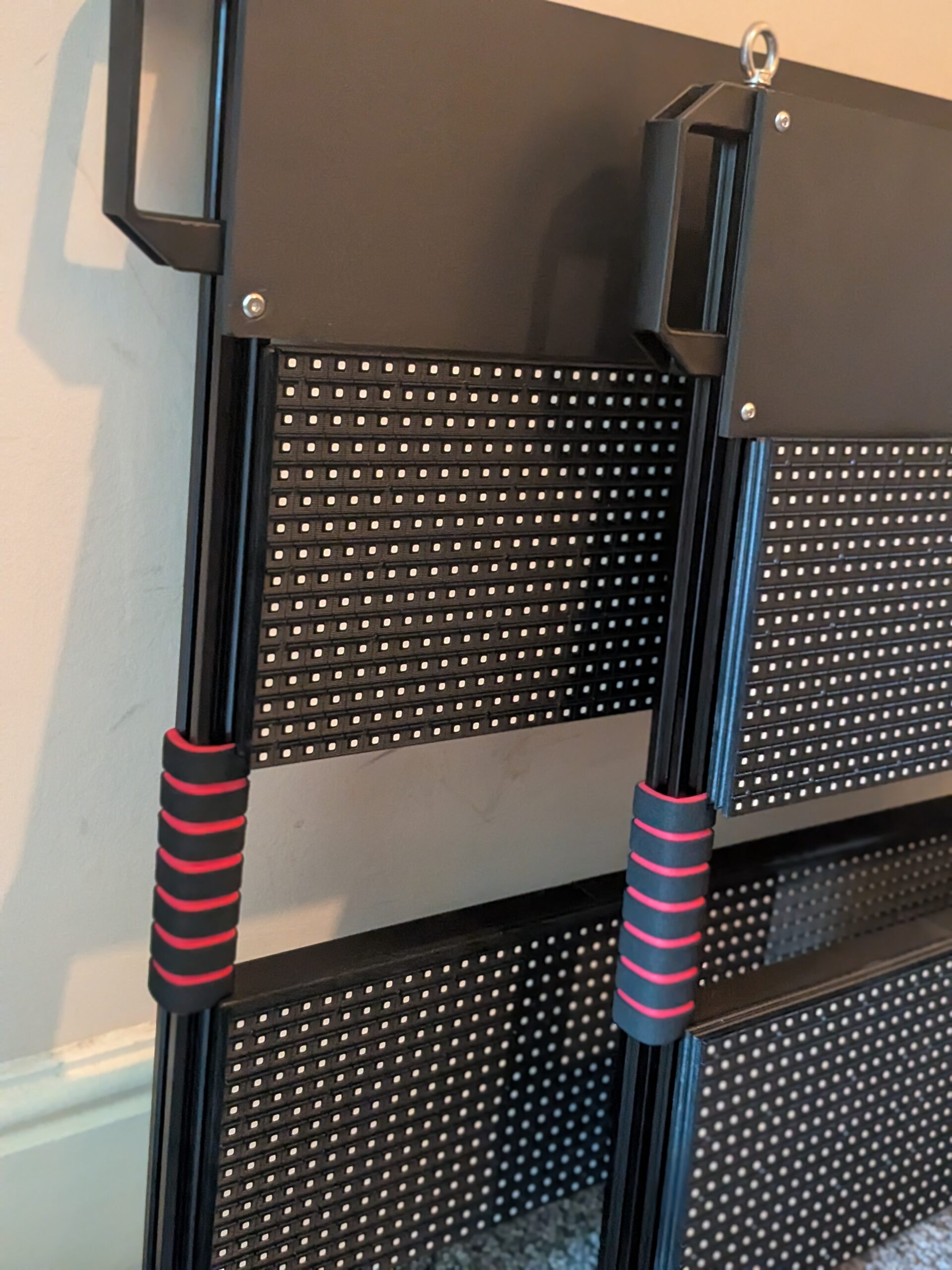

With the brightest IP65 rated LEDs available and Live Timing integration with our bespoke Amazon Web Services (AWS) integration, our LED Digi boards are an absolute game changer.
No more routing around for numbers and double checking the live timing apps on your phone.
Our LED pitboard supports SpeedHive, TSL Timing and Alpha Live for up-to-date (every 5 seconds) information. ** Internet connection required via mobile hotspot (WiFi & Bluetooth tethering supported)
** Please note : Pitboards are made to order and therefore there maybe 3-5 business days delay before dispatch. If you want an estimate on delivery (or collection) please reach out to us via email or Facebook
Important
The pitboard does not come with batteries. Makita 18v batteries are required. We recommend having 2 batteries so that you always have one fully charged and ready to swap out.
Safety & Tips
- Avoid getting the board soaking wet, even though it’s water-resistant.
- Keep an eye on the 18v Makita battery levels. If there is only 1 or two bars showing; it’s probably time to charge and replace with a fresh battery.
- There is no low battery voltage shut off on the pitboard; so it will keep draining the battery and may mean the battery cannot be recharged if the battery’s charge state drops too low.
Basic Use
To begin, connect an 18v Makita battery to the board. Then, turn on the board using the switch on the back. The green LED will light up, and after about 30 seconds, the board will be ready.

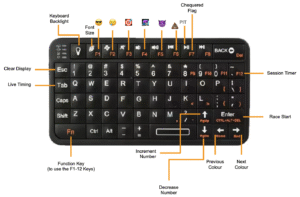

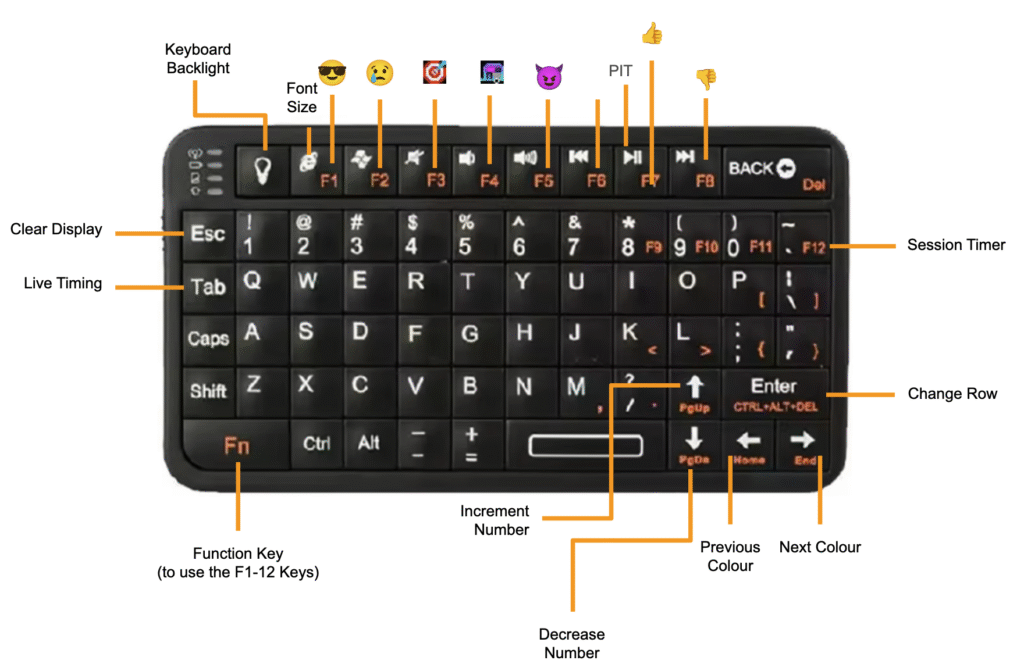

The Keyboard
The keyboard works automatically with the board. Use it to display text, numbers, symbols, and access the board’s various features.
Changing Information
- Use the backspace key to delete characters one by one.
- Press the Escape key to clear the entire display.
- Use the Enter key to change rows; A blue led will appear in the top left corner of the active row.
Colors
Choose from eight colors: white, yellow, red, light blue, dark blue, pink, orange, green, and purple. Use the left and right arrow keys to change the color of the text.
Emojis
- Sunglasses 😎 : F1
- Sad Face 😥: F2
- Target 🎯: F3
- Caravan : F4
- Devil 😈: F5
- Poop 💩: F6
- Thumbs UP 👍 : F7
- Thumbs DOWN 👎 : F8
Race Functions
- Play/pause button: Toggles the pit message with checkered flags.
Additional Features
- Font Size: Press the F1/Home button to cycle through font sizes.
- Brightness: Adjust with the volume up and volume down buttons.
- Session Timer: Enter a number, then press F12 to start a countdown timer from that number of minutes.
- Check for Updates : Hold FN and press HOME/Left Arrow
- If an update is available; You will be prompted to update to vX.X.X Y/n. Press the Y key to update or N to exit the update process.
- Important : Do NOT turn off the pitboard during the update process. This could take anywhere between 10-60 seconds depending on the update
- Current time : Hold FN and press END to display the current time
Live Timing
- Connect to live timing services for up-to-date race information.
- Supported services: TSL Timing, My Laps/Speedhive, Alpha Live.
- Data refreshes every 5 seconds.
- Contact Scott Dermott at [scott@twoclicksout.co.uk] to customize data display, including what information shows and where it’s placed on the board. Provide the rider’s name, race number, and the service you’re using.
- Important Safety Feature: If the live timing service indicates that the race/session has been red-flagged due to an incident, the pit board will automatically display a red flag.

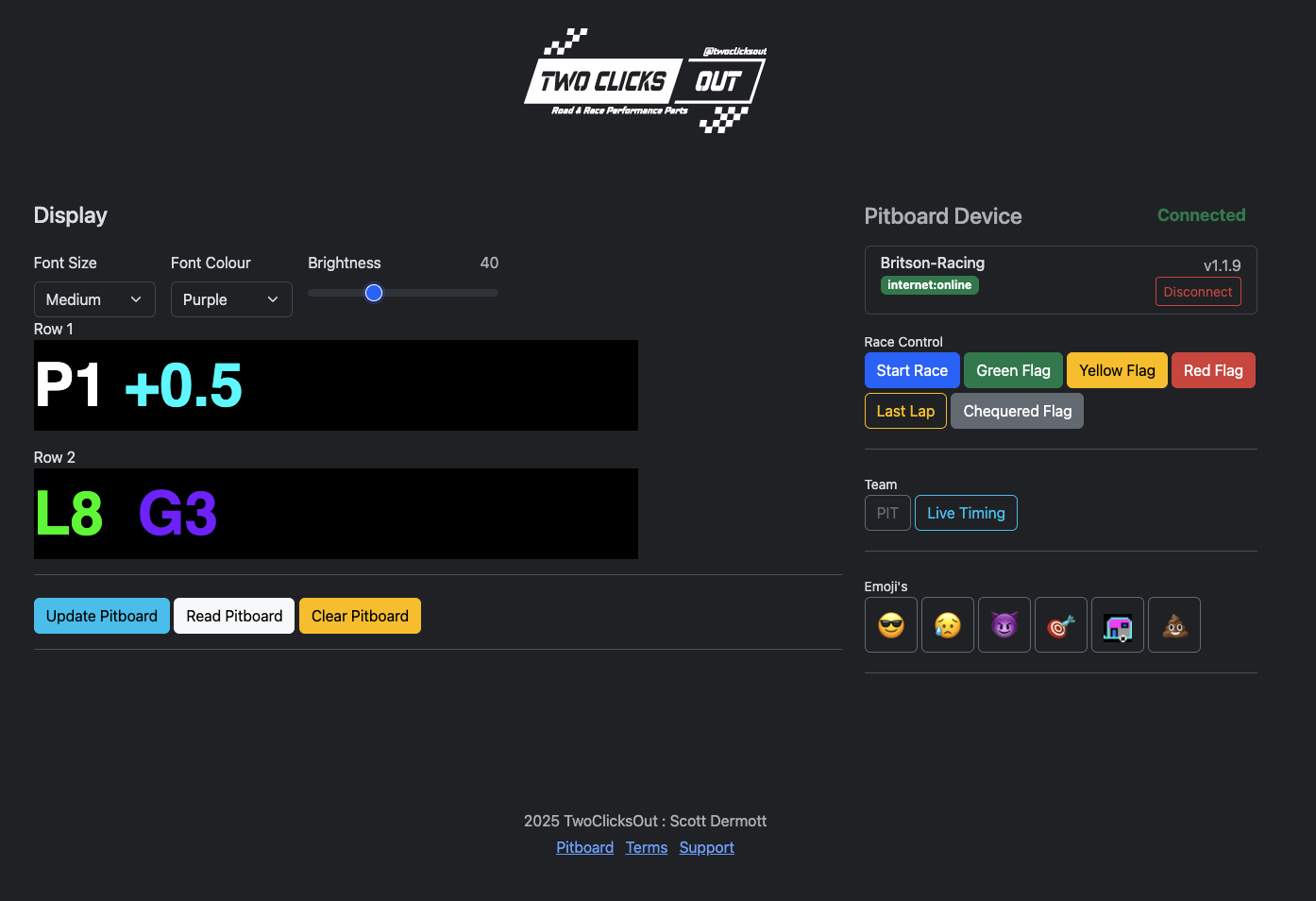

Bluetooth Control (In active development feature)
The pitboard can be controlled from a Laptop or Android Device
Example below:

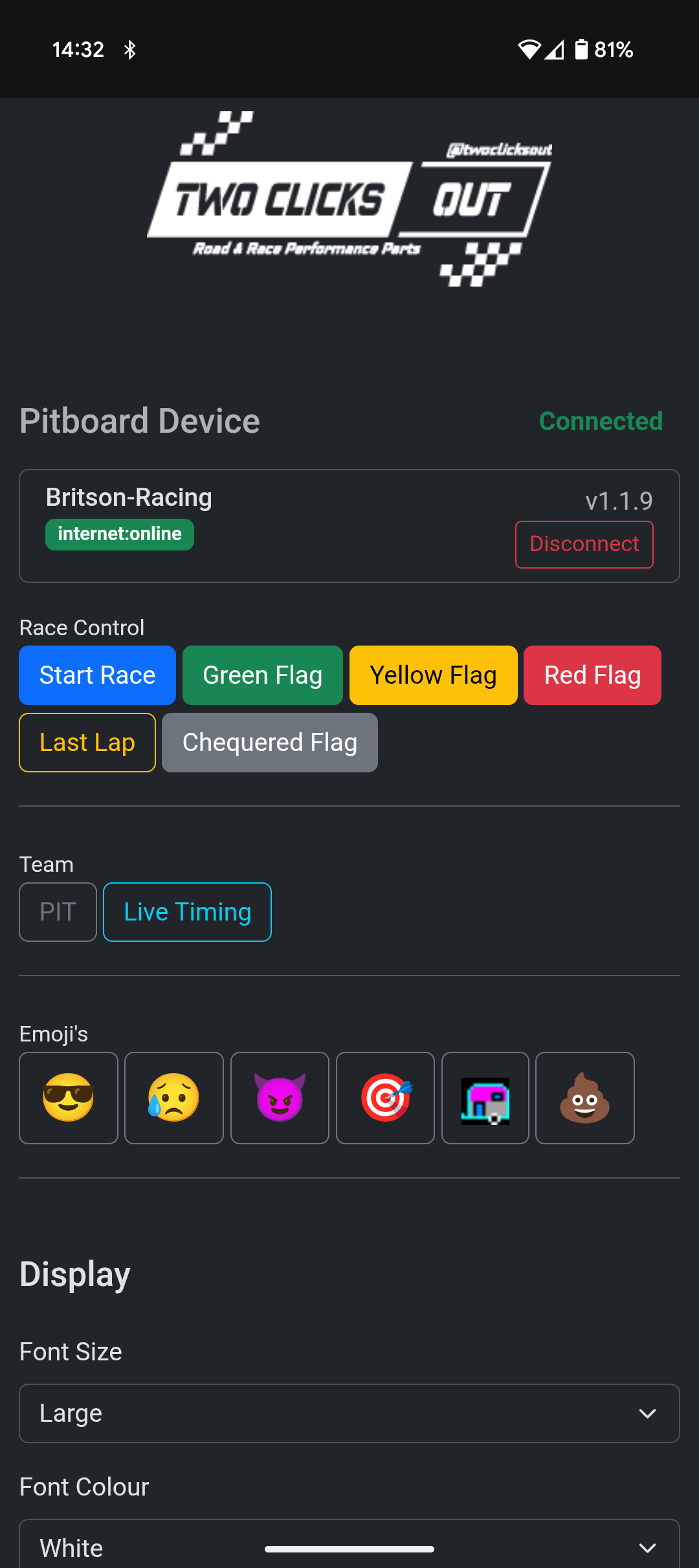

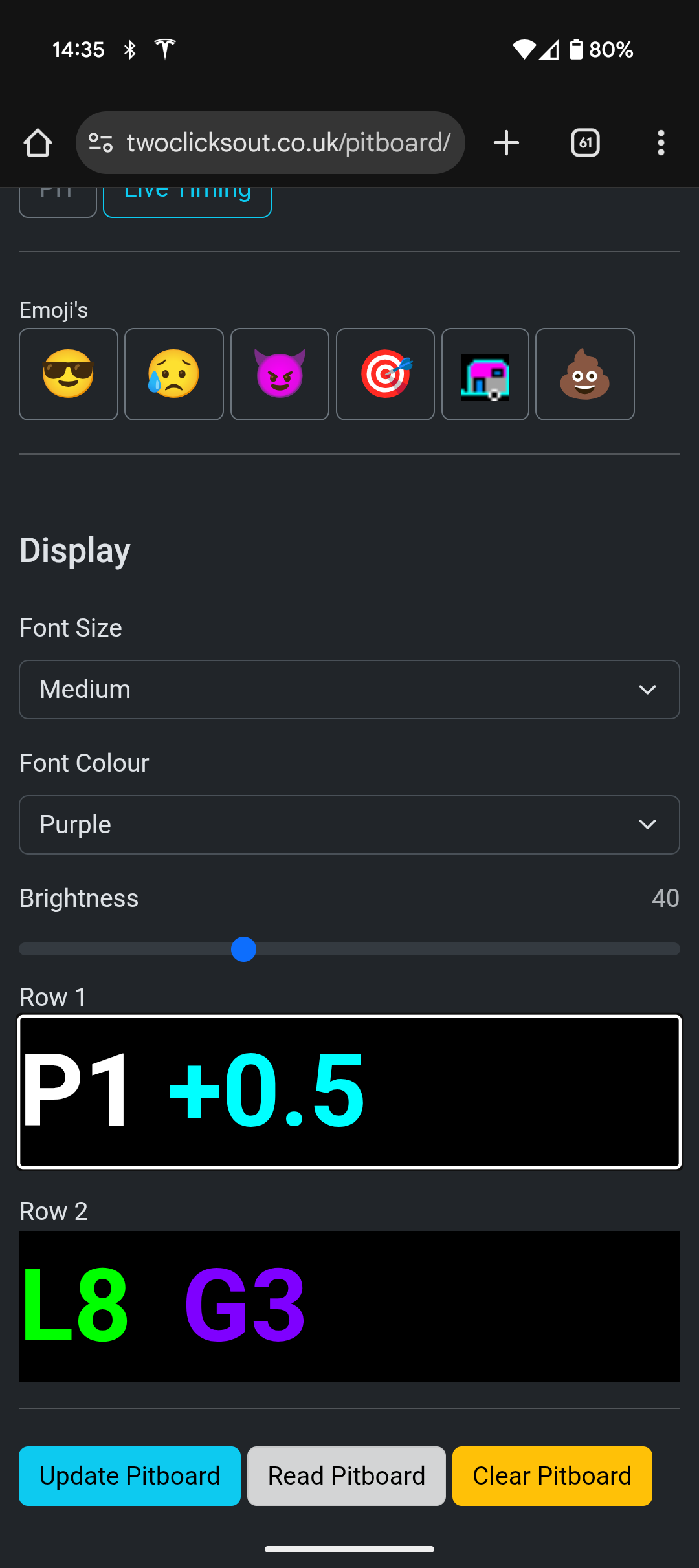

Android Device

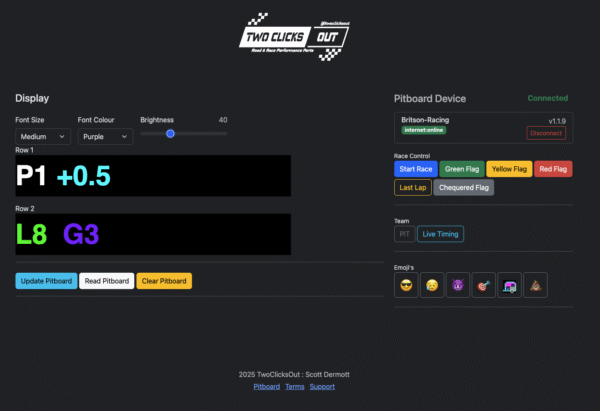

Laptop:
Disclaimer and Terms of Use
Warranty: This LED pit board comes with a 1-year warranty against defects in materials and workmanship, provided the board has not been modified or damaged due to misuse or neglect.
Liability: While every effort has been made to ensure the reliability of this product, the manufacturer is not liable for any damages or losses arising from the use or malfunction of the pit board.
Data Usage: When connected to live timing services, rider data is collected solely for the purpose of displaying race information on the pit board. This data is not shared with any third parties.
Modifications: Any modifications to the board’s hardware or software will void the warranty and may affect the board’s performance and safety.
Contact: For any questions or concerns, please contact Scott Dermott at [scott@twoclicksout.co.uk]
